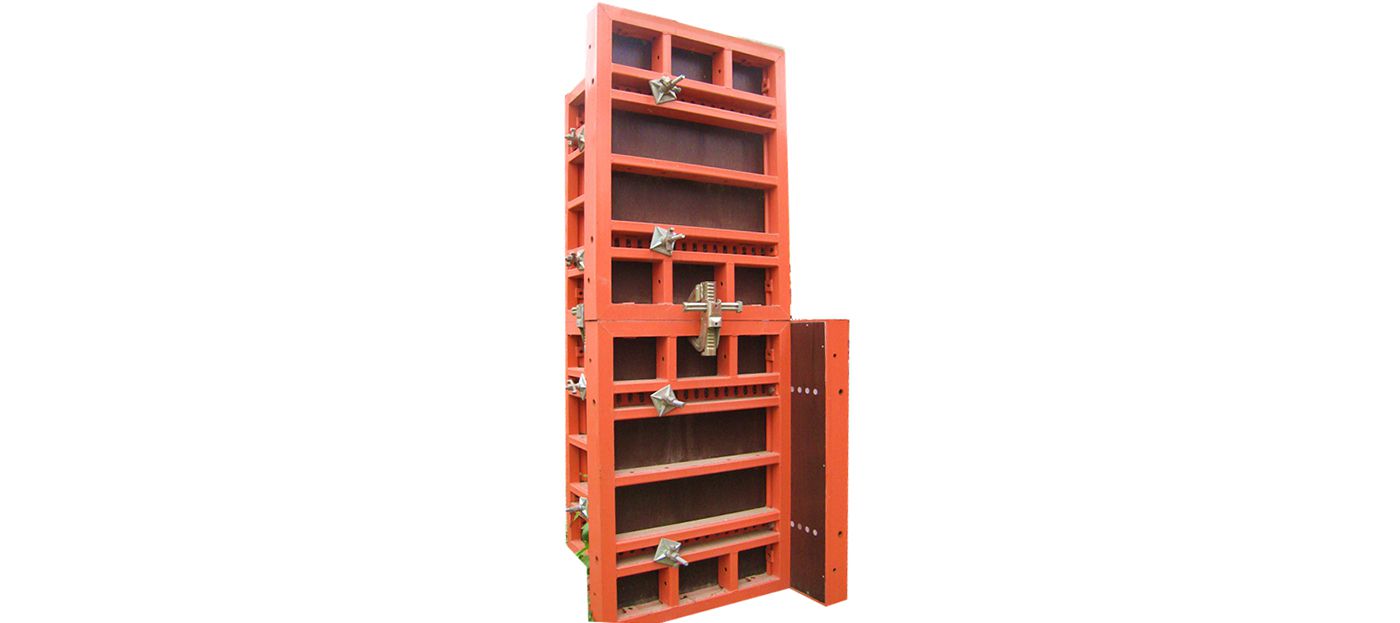

ZOLO Z-FORM™120 adjustable column formwork panel is highly versatile with ZOLO Z-FORM™120 wall formwork. We refuse repetitive investment!
ZOLO Z-FORM™120 adjustable column formwork can realize max.1050mm width square and rectangular-shaped column with the 90 cm wide and 120cm wide Z-FORM™120 column panels.
ZOLO Z-FORM™120 adjustable column formwork panel is highly versatile with ZOLO Z-FORM™120 wall formwork. We refuse repetitive investment!
ZOLO Z-FORM™120 adjustable column formwork can realize max.1050mm width square and rectangular-shaped column with the 90 cm wide and 120cm wide Z-FORM™120 column panels.
With tie-rod holes in the panel back, ZOLO Z-FORM™120 adjustable column formwork can also be used in Z-FORM™120 wall formwork operations.
1. High number of re-uses through the quality material and dedicated design.
2. Highly efficient with minimum labour costs and erection time.
3. Easy and simple joint by standard clamp and hook-headed bolt.
5. Designed to withstand high concrete pressures up to 80 KN /m2.
5. The plywood is screwed on from the back when connecting frame and plywood, so the surface of the fnished concrete is perfect
6. The formwork series are a complete system with a full set of accessories, and can be set up flexibly according to project demand.
| Material | Q355 High Strengthen Structure Steel+Powder Coatiing or Galvanized |
| Thickness of front panel | 18 mm Z-PLY™ Grade A or Z-PLASTK™ PP Shuttering Board |
| Maximum Lateral Pressure for Column | 80 KN/㎡ |
| Maximum Lateral Pressure for Wall | 60 KN/㎡ |
| Height | 300/600/1200/3000mm |
| Width | 900/1200 mm |
