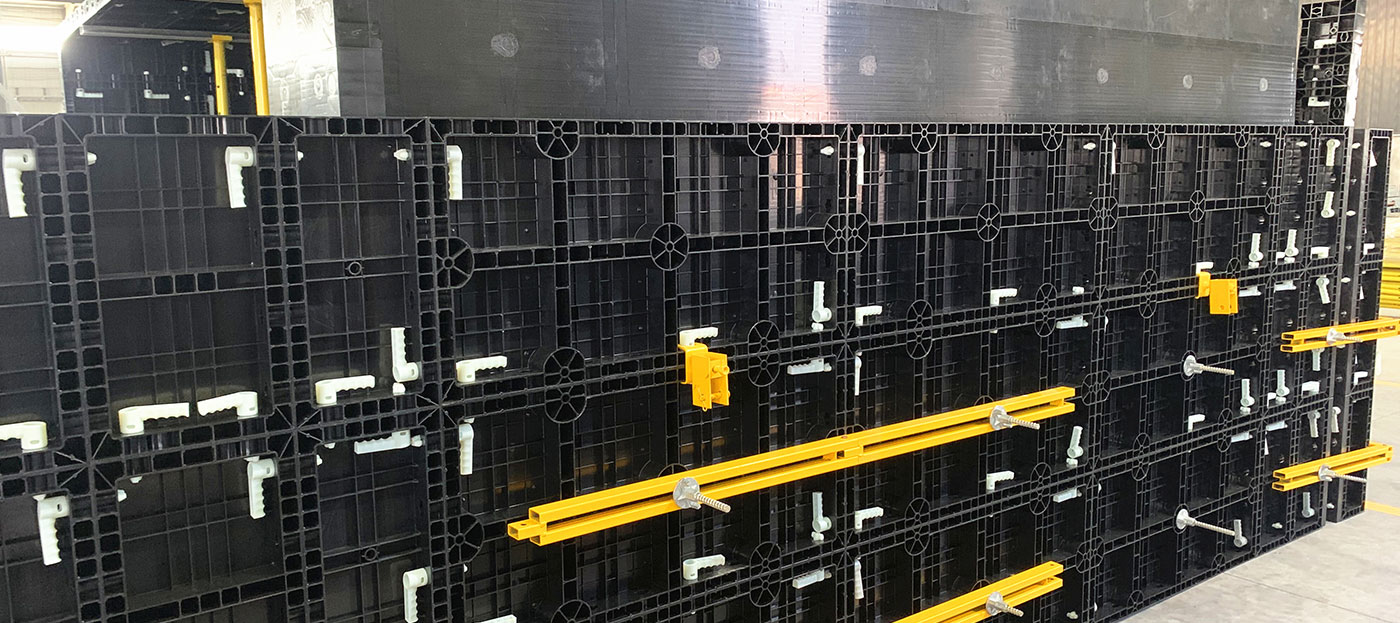

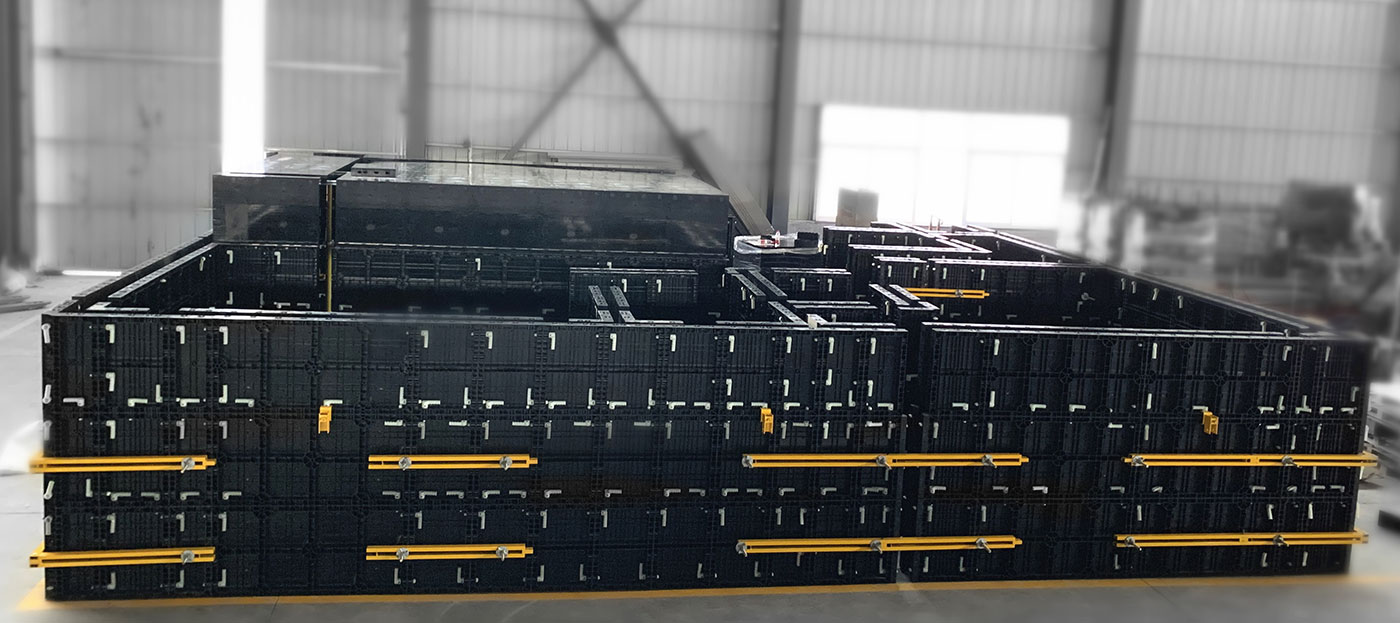

Z-PLASTK™80 Modular Plastic Formwork

With the increasing awareness of environmental protection and sustainable development, the concrete construction site is also an urgent need for a kind of environmentally friendly, reusable, easy-to-operate building formwork to replace the traditional wooden formwork and steel formwork, Z-PLASTK™80 Modular Plastic Formwork with the help of ABS plastic is unique high-strength, low weight, environmentally friendly features, it already start a new era of construction.

Renseignez-vous maintenant

Overview

Z-PLASTK™80 Modular Plastic Formwork is one type of rapid,handy,modular and economic solution for concrete slab, column and wall. It can make your job easy.

Features

1. Various size specifications, flexible combination to adapt to different concrete structures

2. The slab and wall can be casted in a single pour.

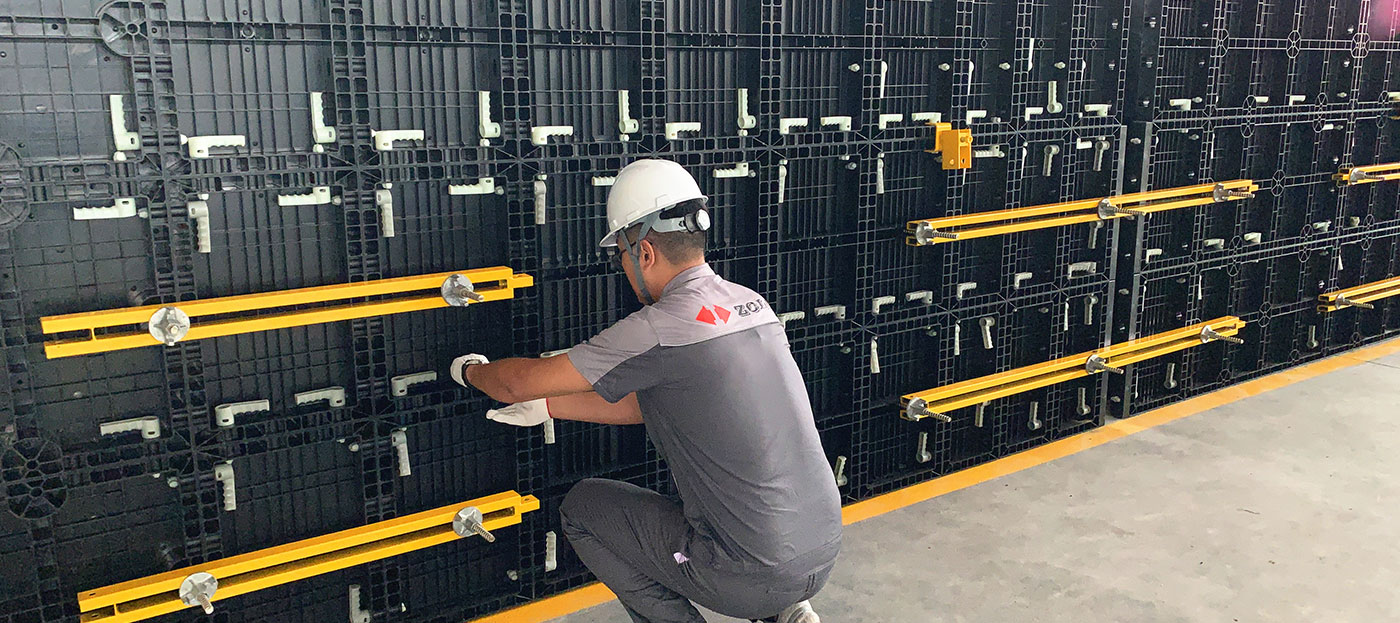

3. The weight of the largest size formwork panel is about 11 kilograms, which can be easily handled by worker. The panels are simply connected by locking handles, so that they can be operated by ordinary workers without the need for skilled workers, which greatly improves construction efficiency and reduces labor costs.

4. The concrete surface can reach the level of fair-faced concrete, with precise dimensions, verticality and flatness greatly superior to that of wooden formwork and steel formwork, saving the cost of secondary plastering.

5. The formwork is completely waterproof, resistant to moisture, does not swell, and does not deform at high temperatures.

6. Under normal use, it can be in circle use at least 100 times.

Specifications

Material	ABS+NYLON(Handle Locker)
Density	1.03g/cm³-1.28g/cm³
Operation Temp.	-20℃to +80℃
Surface Hardness	Shore 95
Elasticity modulus	2Gpa
Shrinking Ratio	0.4%
